Clover Connect Machine Integrations and Workflow

Clover Connect Machine Integrations and Workflow

Step 1: To integrate please click on Clinic and Staff Settings >>>> Marketplace >>>>Clover Connect >>>>click on configuration details and add your Clover Connect credentials.

Please contact VETport support team with any questions and we will be happy to help.





Step 2:  Payment types used need the ''Allow payment gateway option selected''

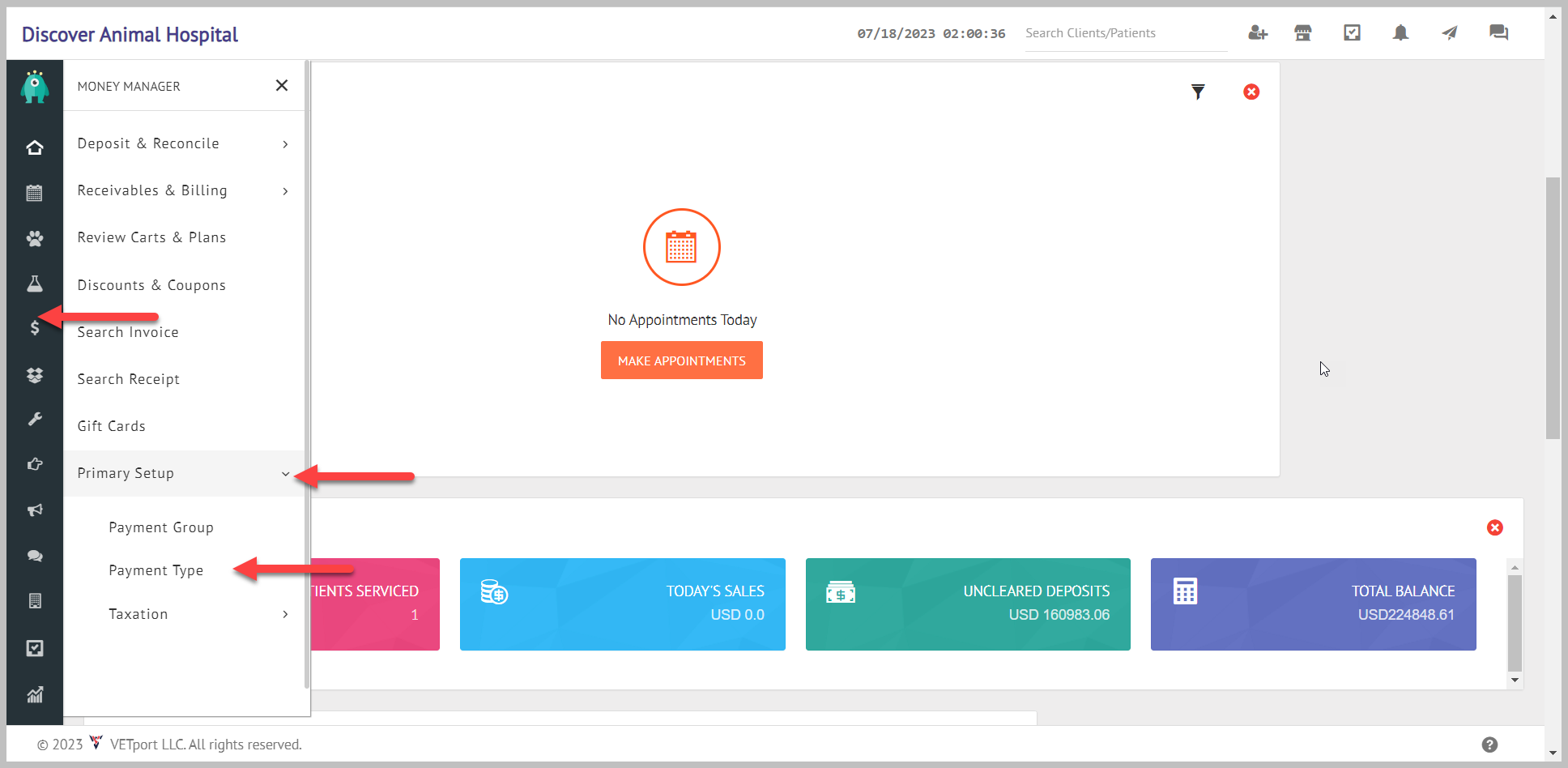

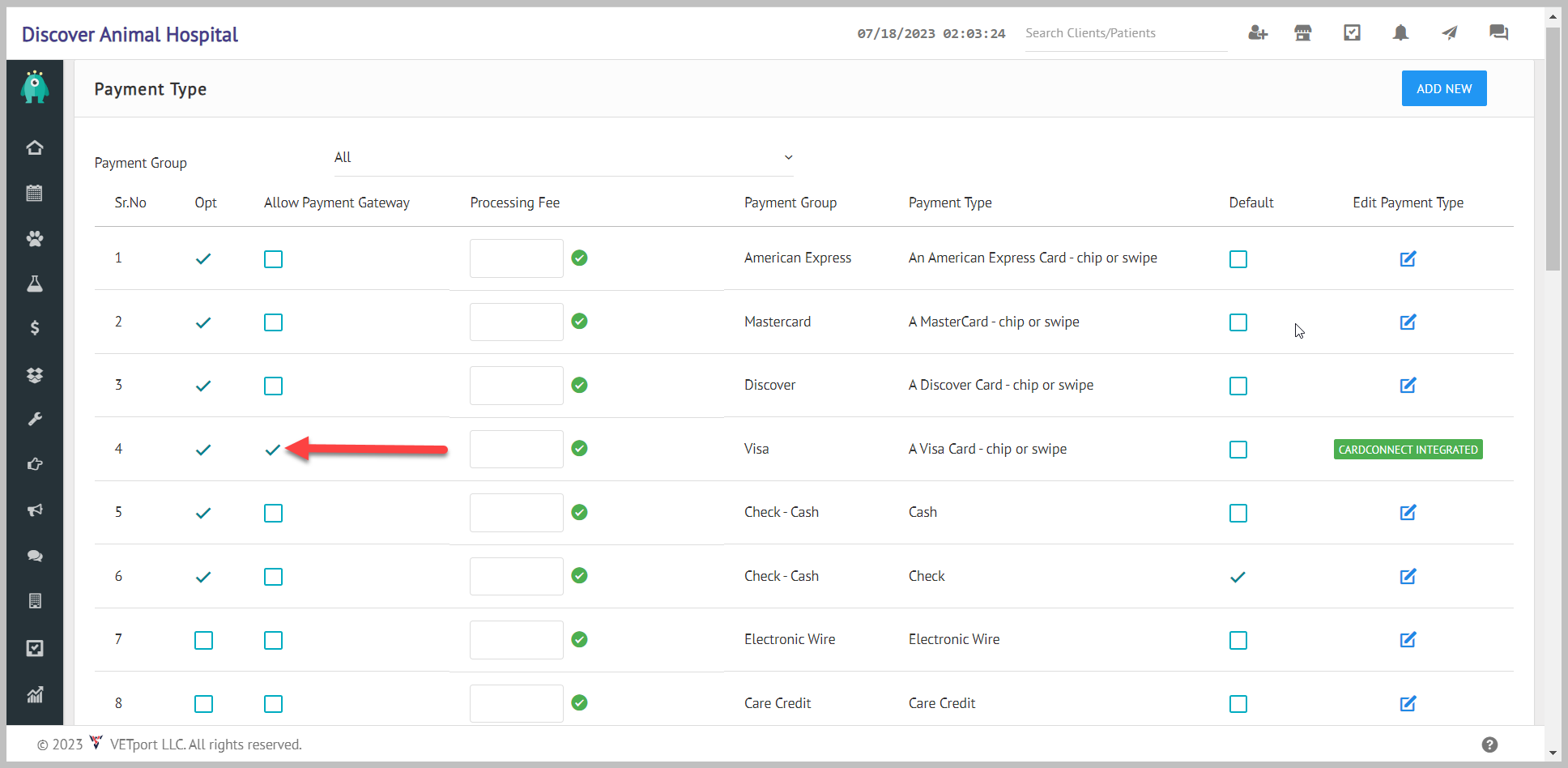

Please go to Money Manager>>>>Primary setup>>>>Payment type>>>>check the Allow Payment Gateway accordingly,





Step 3(a): Accept payment using the Clover Connect device.

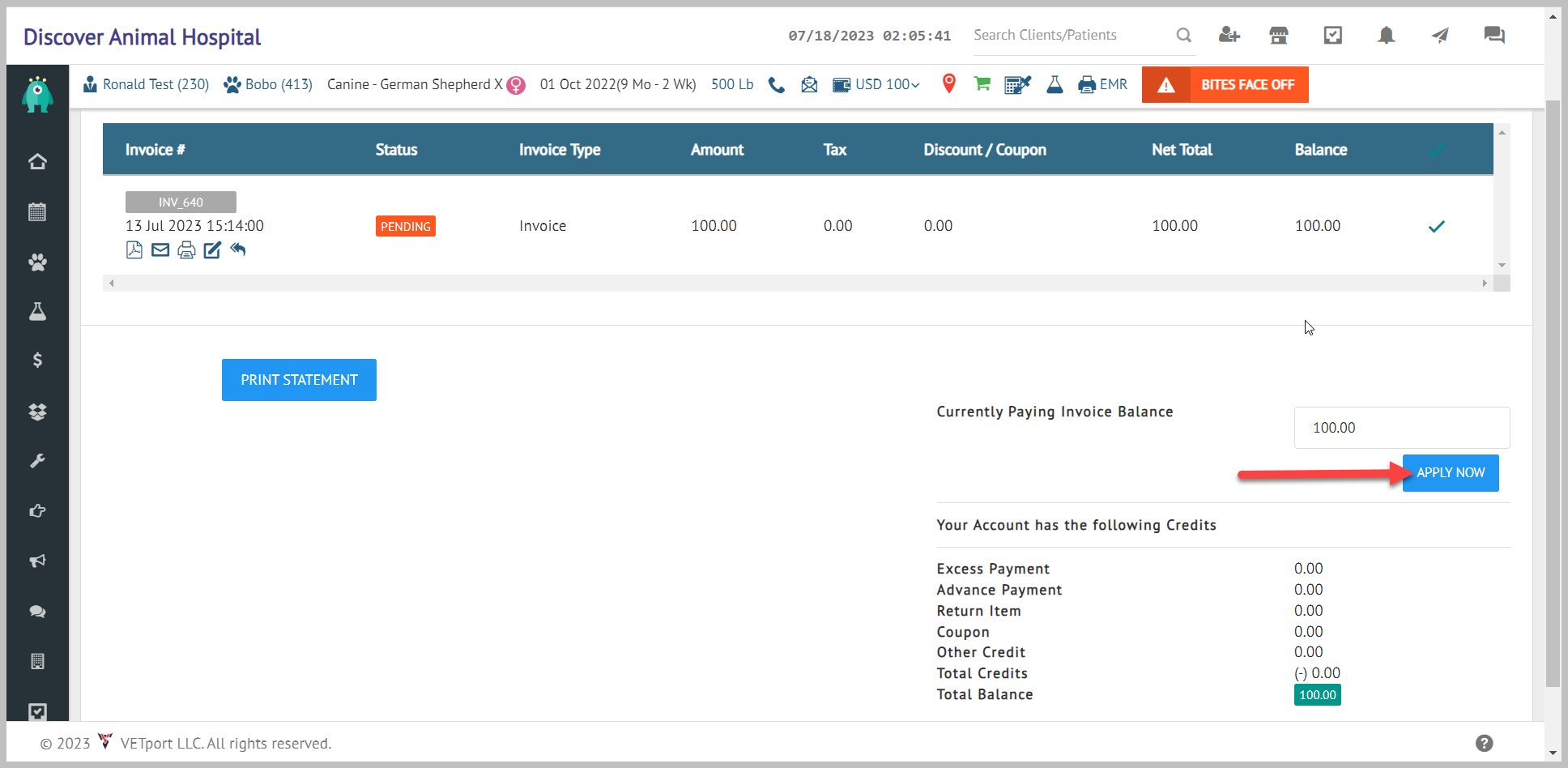

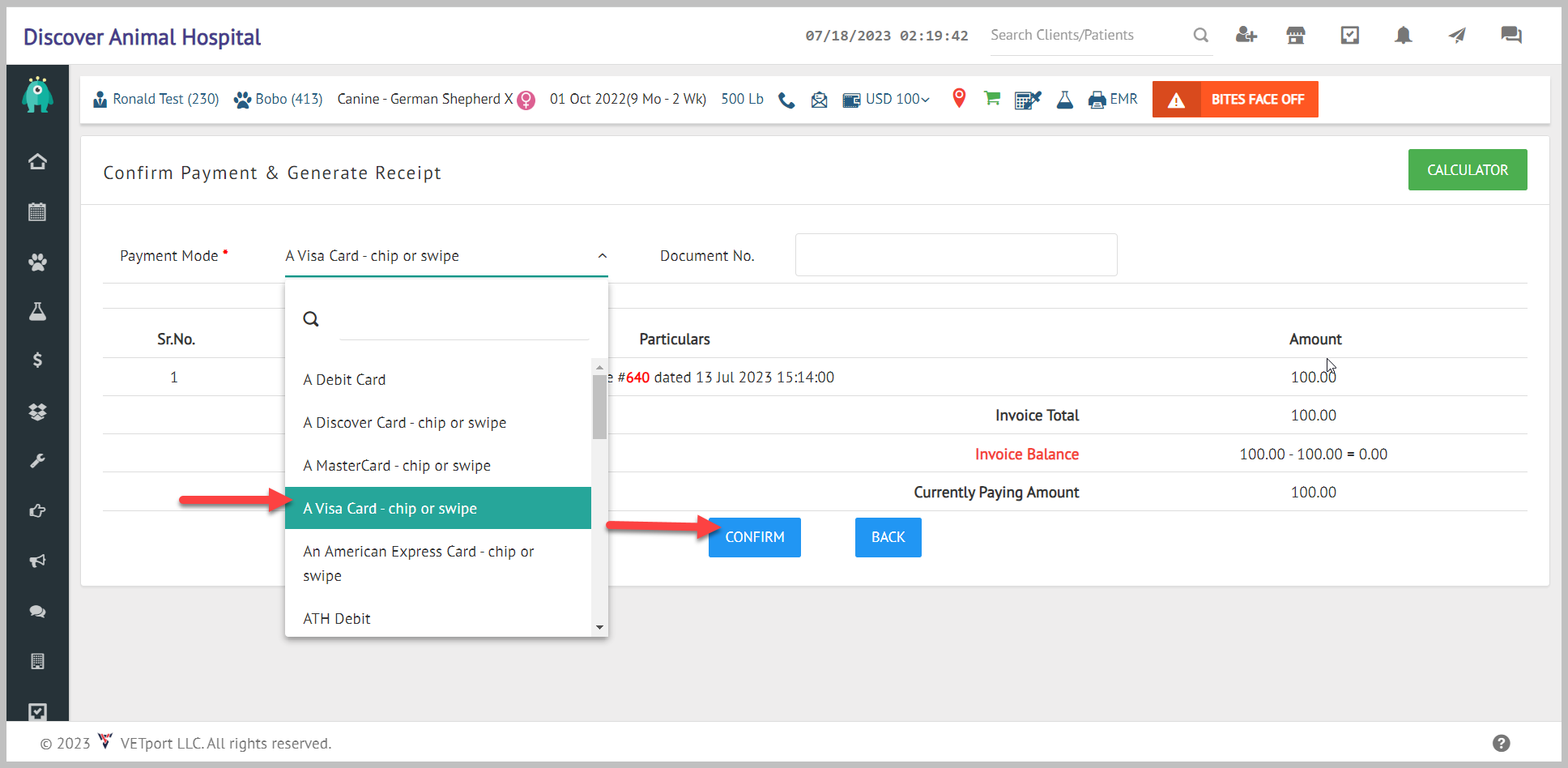

Click on Apply now>>>>select the Payment Mode>>>>click on Confirm and you will be routed to the Clover Connect gateway page.




PLEASE DO NOT  CLOSE THE VETPORT PAGE OR CLOVER CONNECT PAGE UNTIL PAYMENT COMPLETION

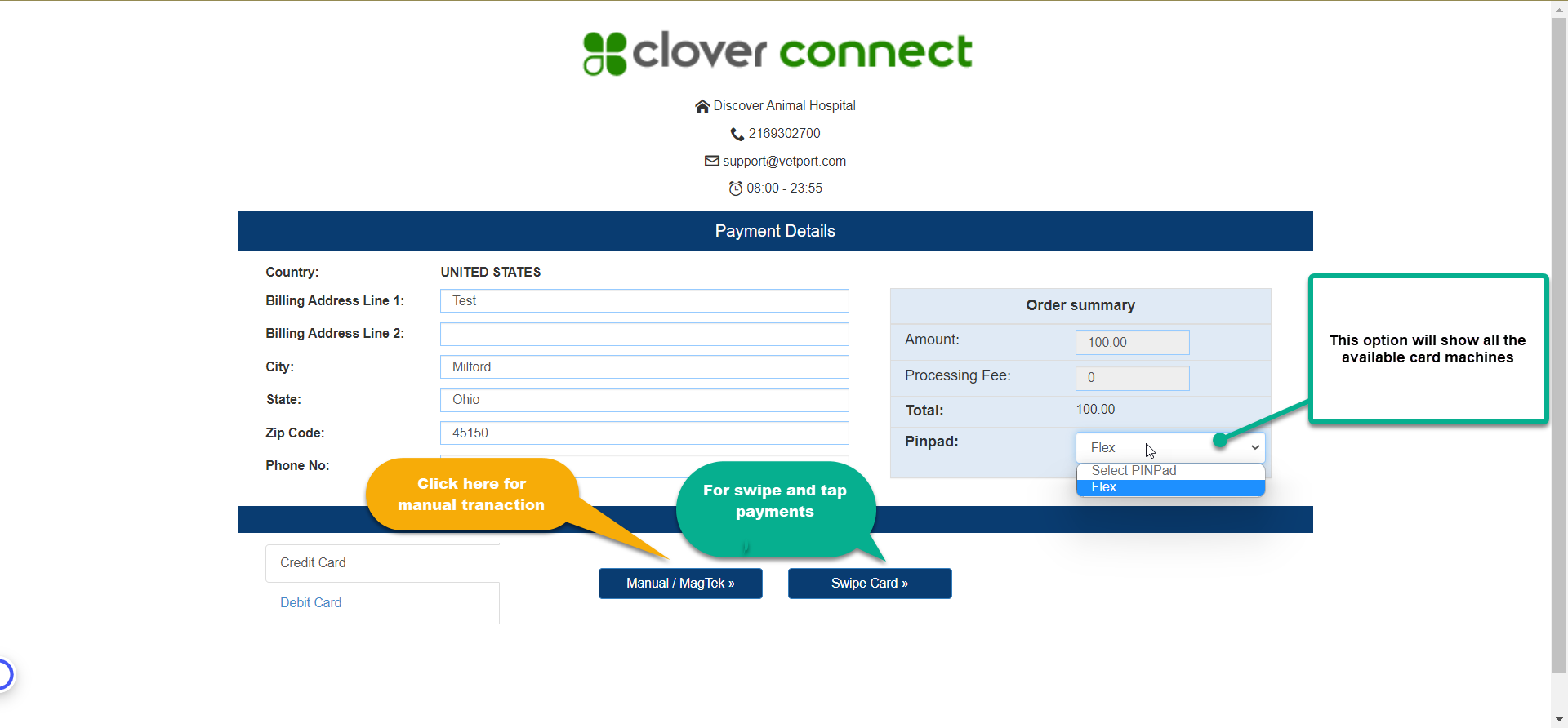

Step 3(b):  Select the card type in Clover Connect and complete the transaction.

Example image for Manual payment option

PLEASE DO NOT  CLOSE THE VETPORT PAGE OR CLOVER CONNECT PAGE UNTIL PAYMENT COMPLETION

NOTE: The device should be in Customer Mode!

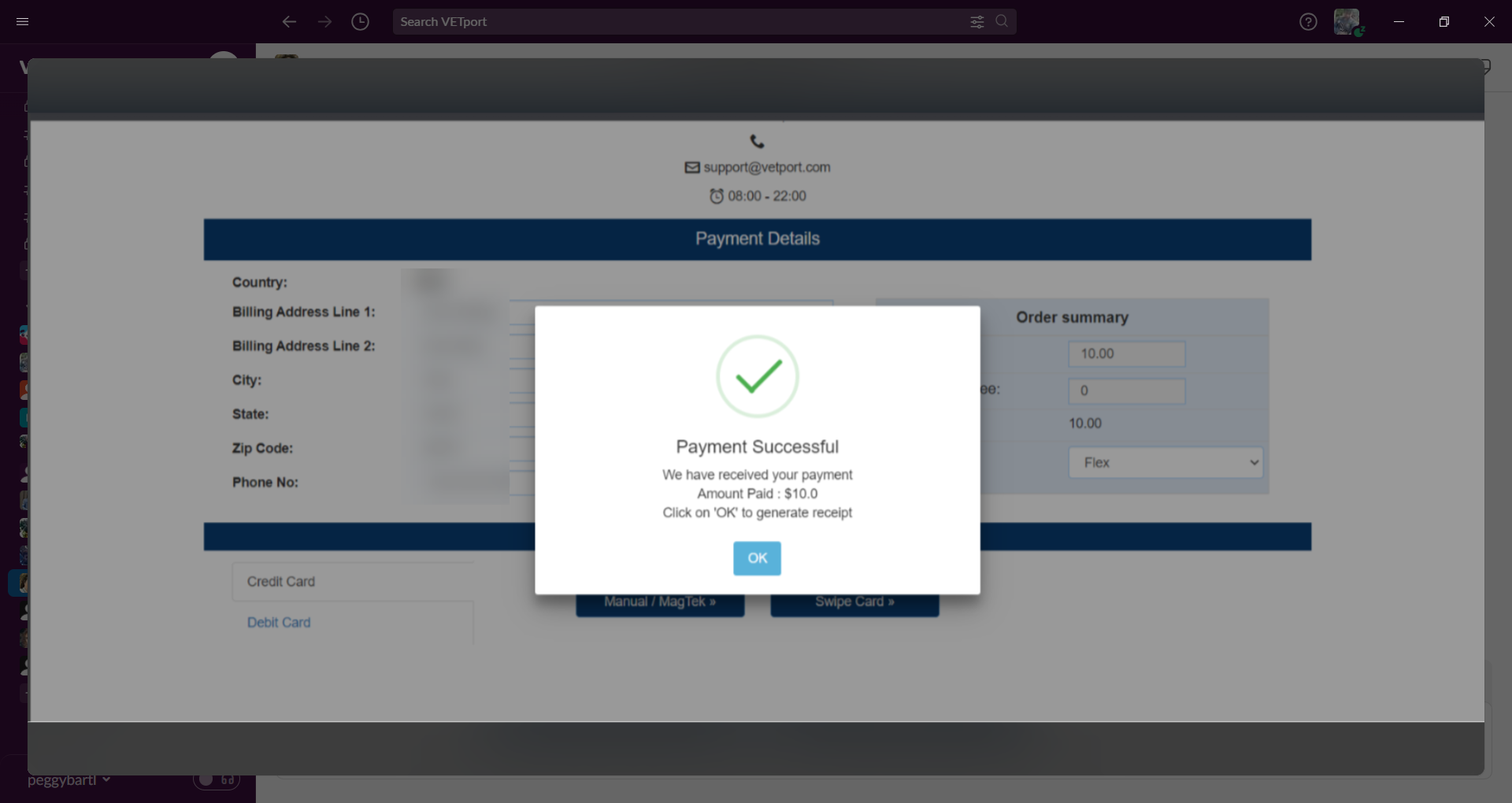

Example for swipe and tap payment completion on Device and VETport.
