D210 WIRELESS POS terminal set up - DIRECT CONNECT (PARAGON)

D210 WIRELESS POS terminal set up - DIRECT CONNECT (PARAGON)

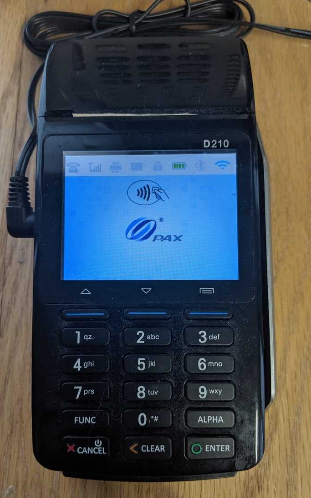

1, Below is the image of  D210 - WIRELESS POS terminal.



To begin with Press on the Right hand side Blue button for the MENU access



2, Operation settings from the MENU settings






If you DO NOT have your password, please check with your seller

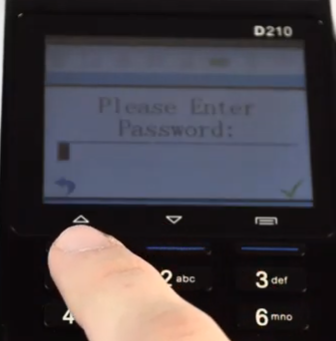

3, Enter your PASSWORD and Press ENTER at the bottom

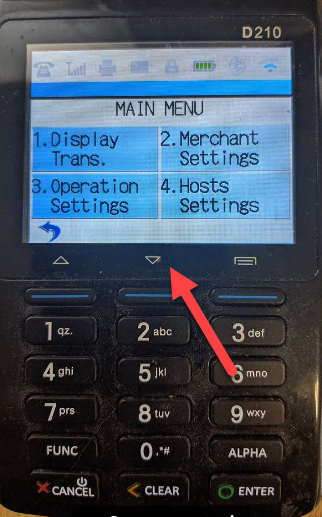

On the MAIN MENU press the down ARROW key as shown above

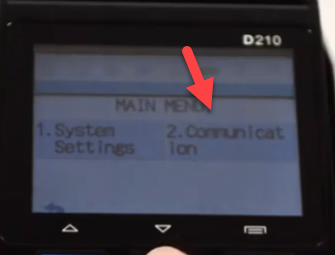

1, Select option for Communication

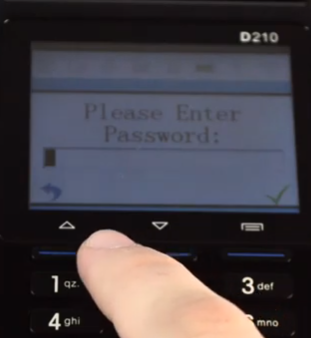

And then ENTER your password again as shown below and PRESS the ENTER button at the bottom.

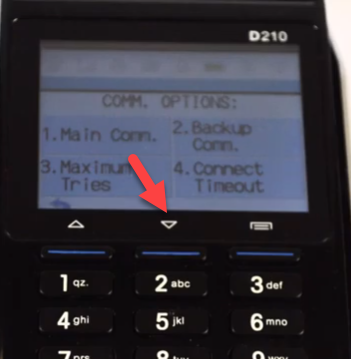

Now on the communication page press the down arrow key.



On the communication page , click on the option WIFI PARAMETERS and click on Search.

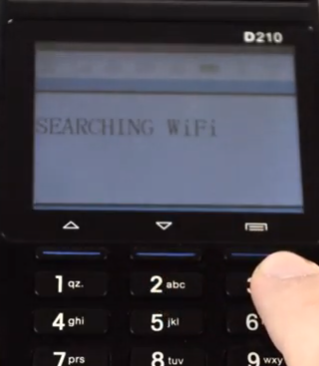

Now the device will search for the WIFI as shown below

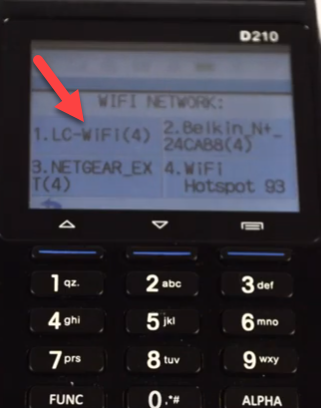

Select the WIFI that you would like to connect as shown below



Once you select the WIFI you wish to connect,
Click on the RED Cancel button on the device multiple times untill see the below message

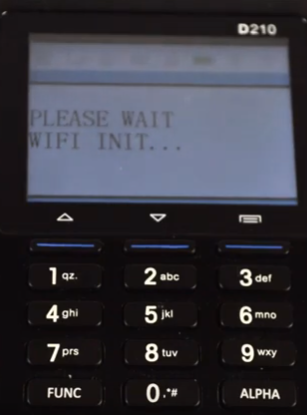

Please wait untill you see the message WIFI INITIATING

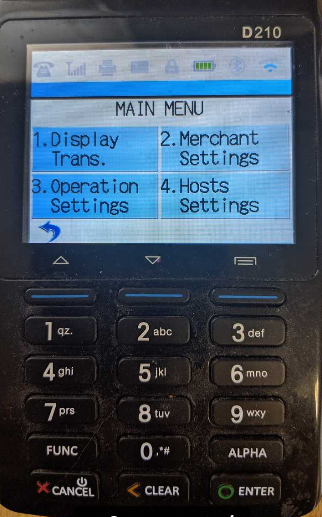

Once the device is connected to any WIFI , it will automatically resume to the MAIN MENU as shown below



Now press the down arrow key from the Main Menu

Select 2 for communciation and enter your PASSWORD again






After you Enter the password, Press on ENTER Key

Now on the communication menu press the down arrow key

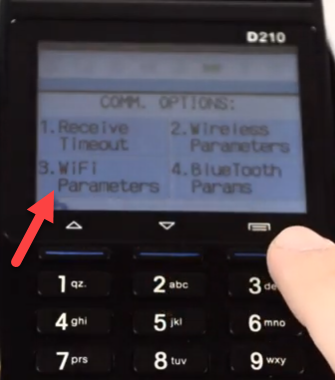

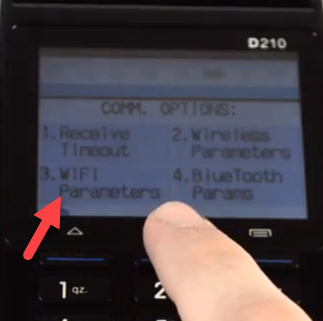

And Select Option 3 for WIFI PARAMETERS



Once the WIFI parameters are selected , Go to the option 1 to view the IP address
Please make a note of this IP address on a piece of paper.

After all the above steps are completed
PRESS the CANCEL Button at the bottom of the device multiple times untill you reach the MAIN MENU.

Now Device is ready and connected to a WIFI and ready for any transcations.
