Pargon (Direct Connect) Gateway Set up - Pax S300 (Wired connection )
Below is the image of - Pax S300 and its euipments.

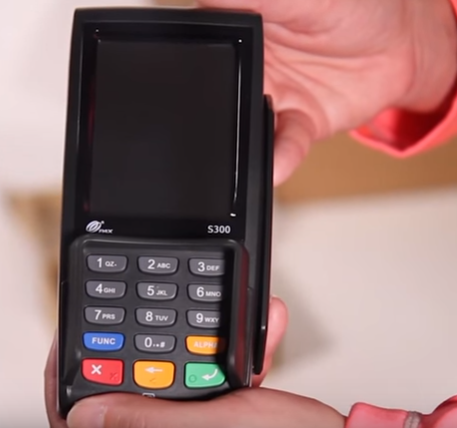

1, Pax S300 Terminal

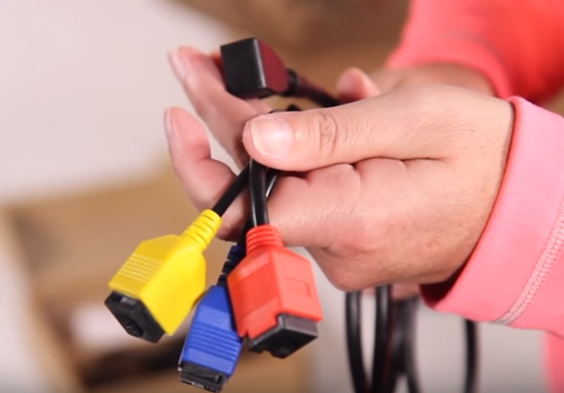

2, Pax S300 - Connector cable as shown below
3, Pax-s300 power chord as shown below
4, One ethernet Cable
5, S80 download cable as shown below
6: Db9 - USB to serial convertor cable as shown below
If you are connecting your Pax S300 to a LAN connection

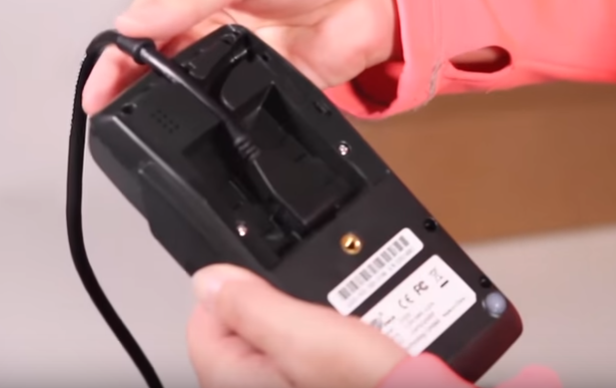

a, Connect the s300 connector cable to back of the Pax s300 as shown below
b, Connect the power cable to the Connector cable as shown below
If this a wired connection

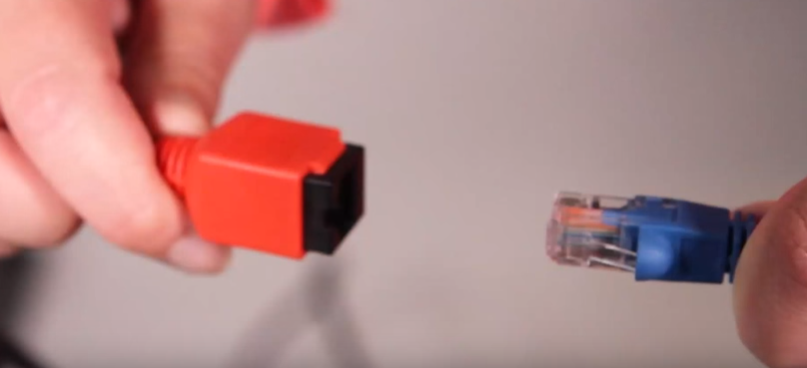

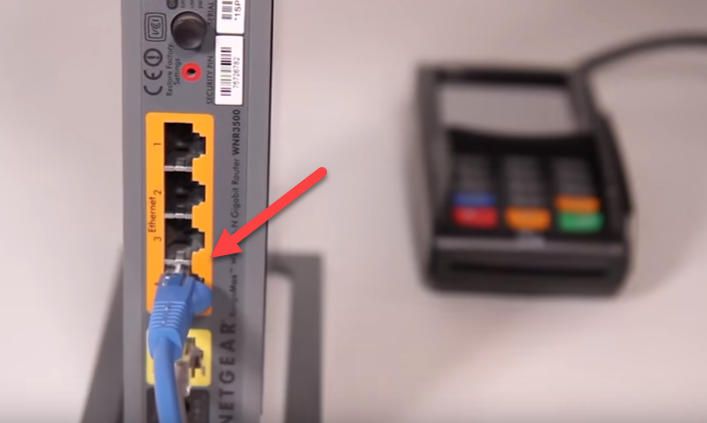

a, You need to connect ethernet cable on Pax S300 - Connector cable and connect the other end to a Router
b, Connect the Pax-s300 power chord to Connector cable of pax-300 as shown below

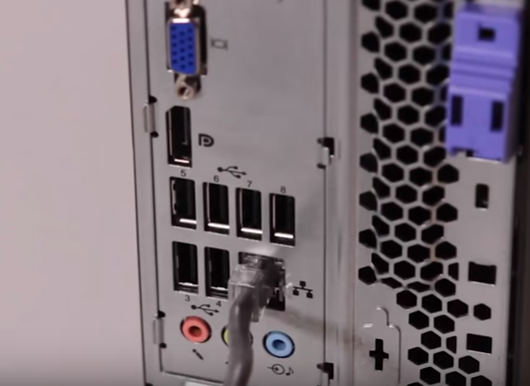

Make sure POS system is aslo connected to the same Router with a ethernet cable as shown below
1, Click on MENU oprion

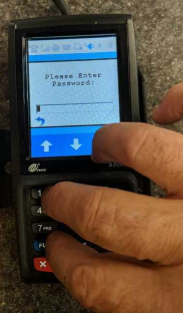

Press FUNC + 1 to enter password
Password today's date : For example : MMDDYEAR : O9132019

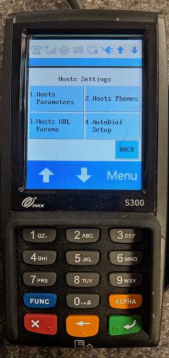

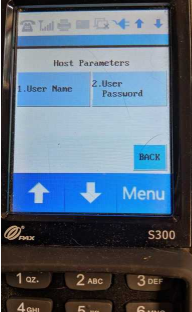

Click on Host Parameters

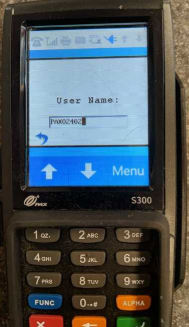

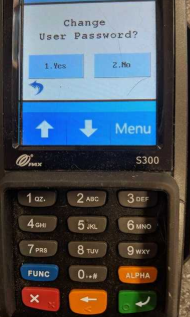

Click on Username

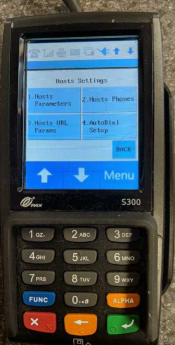

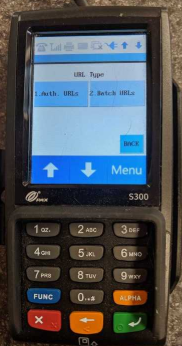

Host URL parameters

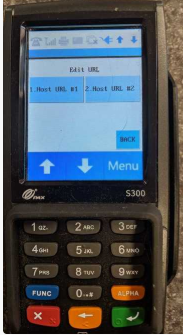

Auth URL
Host URL1
URL : paragonsolutions.com

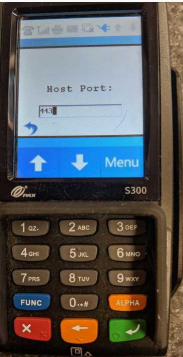

Host Port

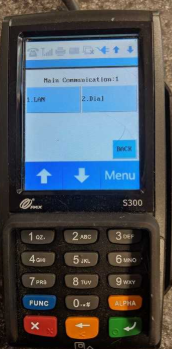

Lan for s300 - should be shipped this way.
